Networks
Networks owns connectivity for the Home: host NIC addressing on this Device, plus VM network records (NAT, bridged, isolated). Networks live here, not in Settings.
Words: Home, Device, Workload, Bridge. Host addressing is this Device. Configure it on Networks → Host interfaces. Workload networks are logical records on the VM networks tab.
Networks opens with two tabs:
| Tab | Purpose |
|---|---|
| Host interfaces (default) | Live NICs on this Device — addresses, Apply. Bridges are their own rows. |
| VM networks | NAT / bridged / isolated records Workloads attach to |
Create → Bridge is the path for a new switch. Fresh install: NICs are unbridged. Uplink Apply no longer implies br0.

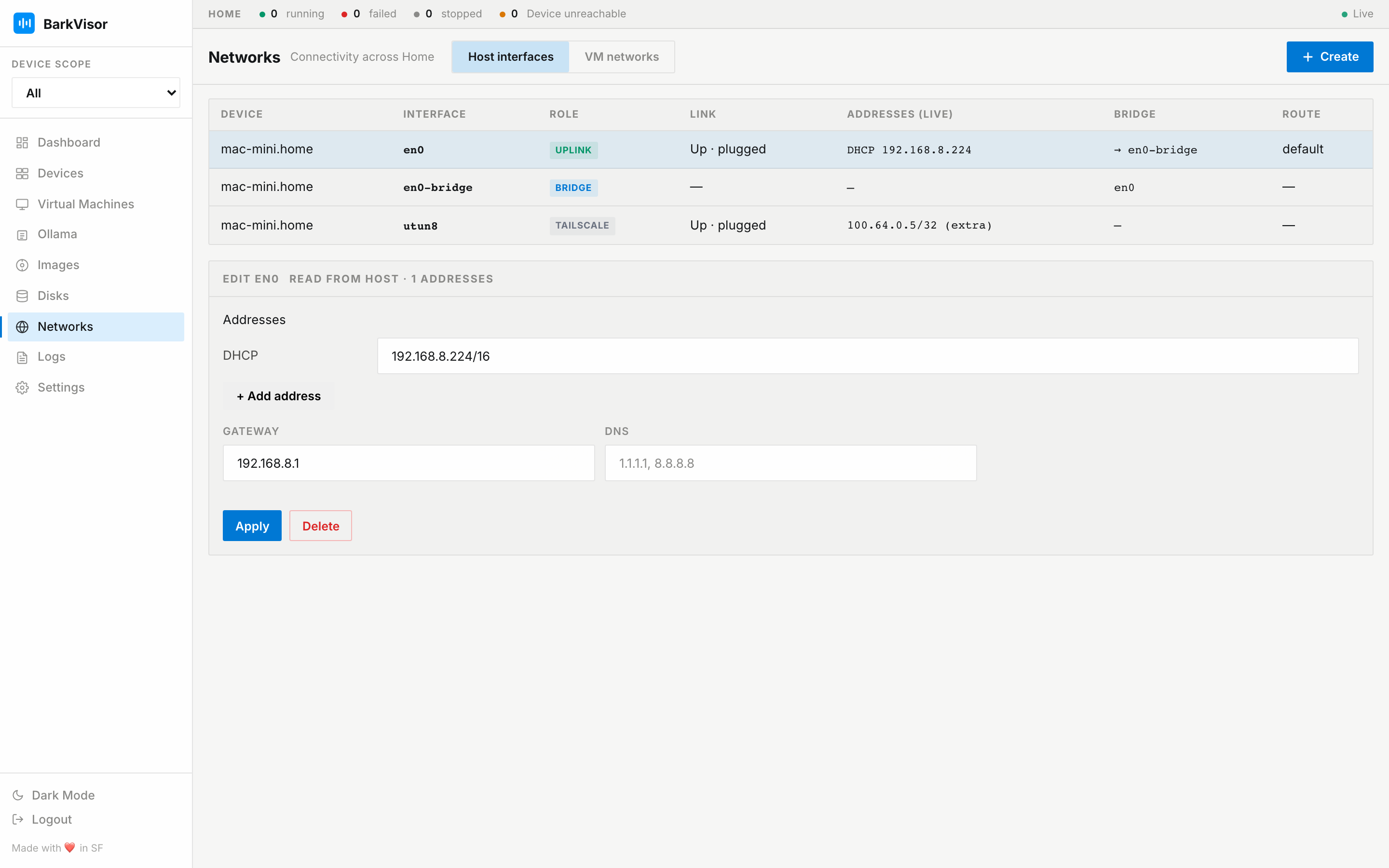

Host interfaces tab
Section titled “Host interfaces tab”The table lists each NIC on the Device:
| Column | Meaning |
|---|---|
| Device | Which Device owns the NIC |
| Interface | OS name (en0, eth0, br0, …) |
| Role | uplink, bridge, tailscale, … |
| Link | link state when known |
| Addresses (live) | DHCP + static aliases read from the host |
| Bridge | bridge membership / readiness |
| Route | default route when relevant |
The toolbar Create button opens a menu with Bridge. The create modal suggests the next-free brN (editable) and enslaves one unused NIC — Linux refuses Wi-Fi, macOS allows en0 (Wi-Fi).
Apply creates the host bridge and wires a bridged Workload network (network.bridge = brN) to it. Same confirm and 60 second Keep as other host-network changes. Two NICs are two Bridges. Workloads pick a Bridge by brN.
Select a row to open the edit drawer below the table.
Address list
Section titled “Address list”The drawer keeps DHCP on. The router lease is shown and is not editable or removable.
- DHCP — live lease from the router (read-only)
- additional — extra static CIDR on the same NIC
- on host chip — BarkVisor wrote this config
Gateway and DNS apply to the NIC as a whole (not per alias). A Bridge row has no address fields — it shows which NIC it is attached to. Add extra static IPs on the NIC, then Apply and Keep changes within the keep window. DHCP stays on.
Apply persists the address plan on the host. Revert undoes BarkVisor files without deleting a shared Bridge. Linux Bridge rows can Delete.
Multi-address examples
Section titled “Multi-address examples”DHCP primary + static alias — the common case for a service IP alongside router DHCP: keep DHCP on, add one extra static address on the same NIC, Apply, then Keep.
Static-only (no DHCP) — used on bridges: fill in the static address plus gateway and DNS, Apply, then Keep.
Use Apply in the drawer — it previews the plan before anything on the host changes.
Mac vs Linux — gateway and DNS
Section titled “Mac vs Linux — gateway and DNS”Both platforms use the same drawer. Apply paths differ:
| Linux | macOS | |
|---|---|---|
| DHCP + aliases | netplan / NetworkManager / systemd-networkd on the NIC or br0 | networksetup -setdhcp on the hardware port; aliases via ifconfig <dev> alias … |
| Static + gateway | Written into netplan/NM with via: / routes | networksetup -setmanual with gateway on the service |
| DNS | netplan nameservers / NM | networksetup -setdnsservers on the hardware port |
| Bridge | Enslave wired uplink into br0, qemu-bridge-helper ACL | socket_vmnet LaunchDaemon; LAN NIC is not enslaved |
On Linux, gateway and DNS in the drawer apply to the whole interface plan (including DHCP primary). Static-only uplinks require a gateway before Apply.
On macOS, gateway and DNS follow the hardware port (networksetup). Aliases use ifconfig and do not get separate gateway/DNS fields. Install socket_vmnet as your user: brew install socket_vmnet. Do not sudo brew install.
Linux Bridge (brN)
Section titled “Linux Bridge (brN)”Create → Bridge allocates the next-free brN and enslaves one unused wired NIC. Apply persists that brN with NetworkManager, netplan, or systemd-networkd, writes a marker-tagged allow brN in /etc/qemu/bridge.conf, and setuids qemu-bridge-helper on known paths. Shared kernel bridges are never default-deleted.
Apply first shows a confirmation with collapsible change details. After Apply, changes stay pending for 60 seconds. A modal asks you to click Keep changes or they auto-revert — including tearing down a Bridge you just created. If the NIC carries SSH or the SPA, Apply warns before the uplink moves.
Wi-Fi is refused. ifupdown is refused.
Use Create → Bridge in the toolbar — it walks you through NIC selection and confirmation.
macOS (socket_vmnet)
Section titled “macOS (socket_vmnet)”Create → Bridge maps the next-free brN onto a NIC (en0 Wi-Fi is allowed), starts socket_vmnet, and adds a bridged Workload network. Extra static aliases still apply on the NIC from the same drawer. NAT Workloads work with bridged host networking down.
After Apply, the same 60 second keep window applies: click Keep changes in the modal. If the timer expires, the Device auto-reverts.
Automating host networking (scripts, onboarding)? The same operations live in docs/api/openapi.yaml as POST /api/system/interfaces.
VM networks tab
Section titled “VM networks tab”Switch to VM networks for logical network records Workloads attach to.
- Create Network — opens the create modal (NAT, bridged, or isolated)
- List + inspect pane — mode, subnet, attached Workloads, interfaces
A Device that can do bridged networking but is not host-ready yet may still show as amber Bridge · Pending in the list. Selecting it deep-links to the owning interface on Host interfaces. NAT still works when bridged host networking is not ready.
Create Workload network
Section titled “Create Workload network”The modal takes:
| Field | Meaning |
|---|---|
| Mode | NAT, bridged, or isolated |
| Host bridge interface | NIC from Host interfaces (bridged mode) — configure the bridge there first |
| DNS Server | DNS handed to guests (NAT / isolated) |
Device addresses (NICs, DHCP, gateways) are on Host interfaces. Workload networks are logical — NAT, bridged, or isolated.
Attach networks to a Workload in its Create VM wizard step or from Workload details.
